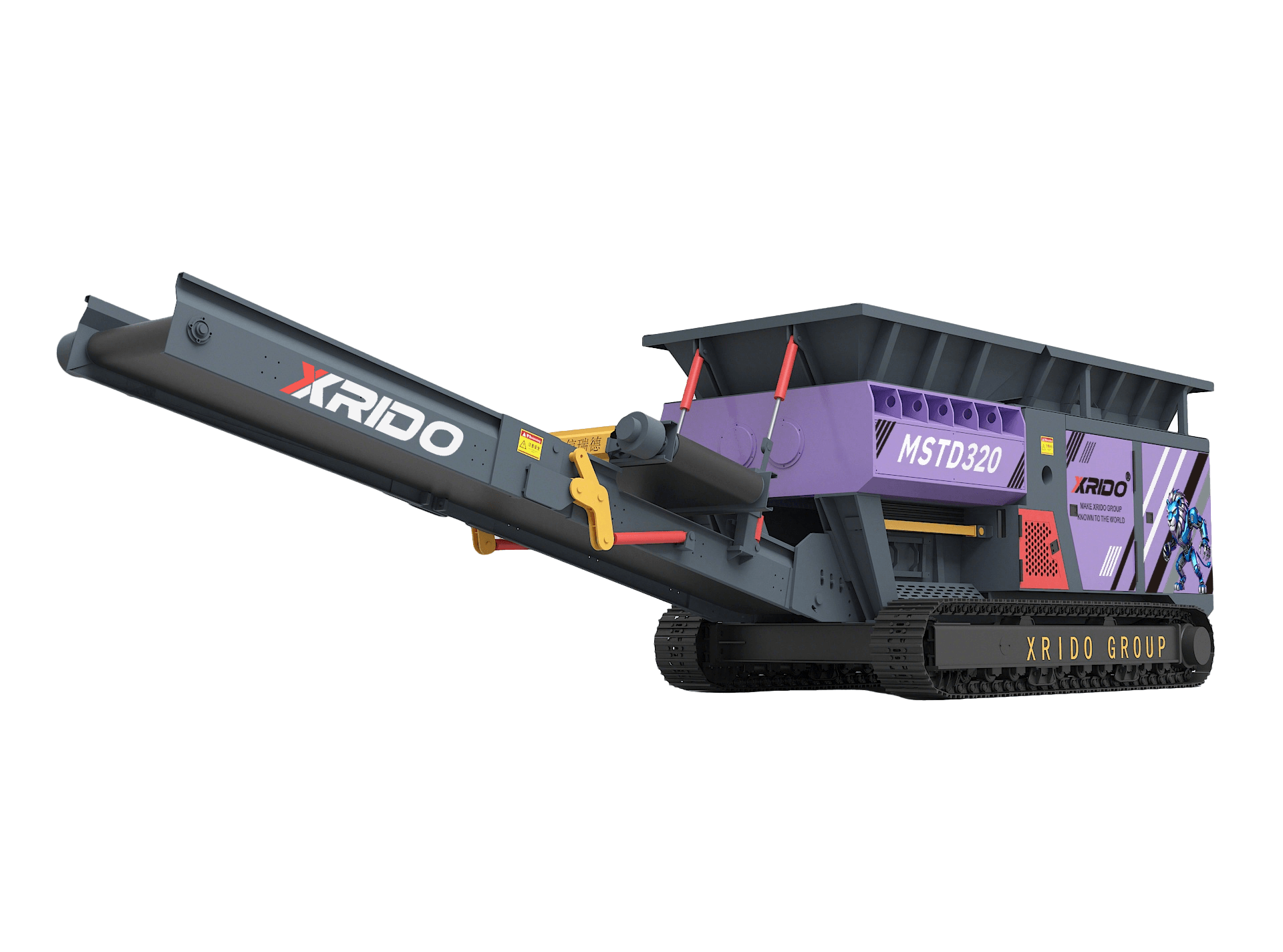

MSTD320 Mobile Crushing Station for Flexible Waste Recycling
← All Products
1 / 9Overview
Suitable materials: Waste Wood · Municipal Solid Waste · Bulky Waste · Industrial Waste · Waste Tires · Aluminum Profiles
Custom configuration · Quote on request
Configured for Your Material and Site
The model shown is a starting point for your project. Equipment configuration and pricing depend on your material, required capacity, output size and site conditions.
Tell us what you need to process. We can help evaluate model suitability, discuss configuration options and prepare a quote for your requirements.
At A Glance
Key Features
- ✓Track-mounted mobile shredder for solid waste processing and resource recovery.
- ✓Suitable for processing waste wood, municipal solid waste, bulky waste, industrial waste, waste tires and aluminum profiles.
- ✓Traveling Speed: 0.6-1.1 km/h
- ✓Conveyor Type: Hydraulic folding
- ✓Main Unit Lubrication Method: Automatic lubrication
- ✓Control System: PLC control
- ✓Control Method: Remote control
- ✓Speed Rotation: 7-15 rpm
Technical Specifications
- Model Number
- XRD-MSTD320
- Drive Power
- 320 HP
- Processing Capacity
- 15-20 t/h
- Traveling Speed
- 0.6-1.1 km/h
- Track Load Capacity
- 60 T
- Maximum Working Pressure
- 32 MPa
- Engine Brand
- Cummins
- Number of Oil Pumps
- 2 units
- Conveyor Type
- Hydraulic folding
- Weight
- 43 t
- Diesel Tank Capacity
- 45 L
- Working Dimensions
- 13000 x 3000 x 5900 mm
- Overall Dimensions
- 8800 x 3000 x 3800 mm
- Hopper Inclination Angle
- 60°
- Magnetic Separator
- 4000 gs
- Main Unit Lubrication Method
- Automatic lubrication
- Number of Shafts
- 2 units
- Speed Rotation
- 7-15 rpm
- Discharge Particle Size
- <200 mm
- Maximum Climbing Angle
- 15°
- Control System
- PLC control
- Control Method
- Remote control
Working Mode (Optional)
1. Low speed, high torque (suitable for hard materials, such as metal) 2. Normal speed (suitable for industrial waste, household waste, etc.) 3. High speed, low torque (suitable for soft materials, such as wood)
Configuration note: Published specifications are for reference. Final configuration and performance depend on material characteristics and agreed project requirements. Ask us about hopper, conveyor, magnetic separation and working-mode options for your application. Discuss your configuration and quote.
MSTD Series
Compare Models
| Specification | XRD-MSTD320 | XRD-MSTD670 |
|---|---|---|
| Drive Power | 320 HP | 670 HP |
| Processing Capacity | 15-20 t/h | 30-40 t/h |
| Track Load Capacity | 60 T | 85 T |
| Weight | 43 t | 65 t |
| Diesel Tank Capacity | 45 L | 70 L |
| Working Dimensions | 13000 x 3000 x 5900 mm | 17000 x 3000 x 7500 mm |
| Overall Dimensions | 8800 x 3000 x 3800 mm | 13500 x 3000 x 4200 mm |
| Discharge Particle Size | <200 mm | <300 mm |
