MSTD850 Mobile Crushing Station for Metal and Recyclable Waste Processing
← All Products
1 / 4Overview
Suitable materials: Scrap Metal · Aluminum Profiles · Other Materials by Test
Custom configuration · Quote on request
Configured for Your Material and Site
The model shown is a starting point for your project. Equipment configuration and pricing depend on your material, required capacity, output size and site conditions.
Tell us what you need to process. We can help evaluate model suitability, discuss configuration options and prepare a quote for your requirements.
At A Glance
Key Features
- ✓Mobile hammer crusher for solid waste processing and resource recovery.
- ✓Primarily intended for scrap metal and aluminum profile processing.
- ✓Not self-propelled; external equipment is required to tow the machine between work areas.
- ✓Multiple models are available for different processing capacity requirements.
- ✓Suitability for wood, municipal solid waste or other materials should be confirmed through material testing and final configuration.
- ✓Output Size: <10-100 mm
- ✓Moving Blade Material: SKD-11
- ✓Speed Rotation: 20-65 rpm
- ✓Cooling Mode: Circulating water cooling
Model Range
Mobile Hammer Crusher Models
| Specification | 350 Model | 450 Model | 550 Model | 650 Model | 850 Model | 1000 Model |
|---|---|---|---|---|---|---|
| Motor Power | 110 kW | 132 kW | 160 kW | 200 kW | 280 kW | 315 kW |
| Processing Capacity | 3-4 t/h | 4-5 t/h | 5-6 t/h | 6-8 t/h | 8-10 t/h | 9-12 t/h |
| Equipment Weight | 15 T | 25 T | 28 T | 32 T | 37 T | 42 T |
| Equipment Size | 3850 x 1765 x 2653 mm | 4010 x 1980 x 2786 mm | 4110 x 2198 x 2862 mm | 4310 x 2398 x 3162 mm | 4810 x 2702 x 3362 mm | 5720 x 2920 x 3780 mm |
| Blade Diameter | 350 | 450 | 550 | 650 | 850 | 1000 |
| Output Size | <10-100 mm | |||||
| Moving Blade Material | SKD-11 | |||||
| Speed Rotation | 20-65 rpm | |||||
| Cooling Mode | Circulating water cooling | |||||

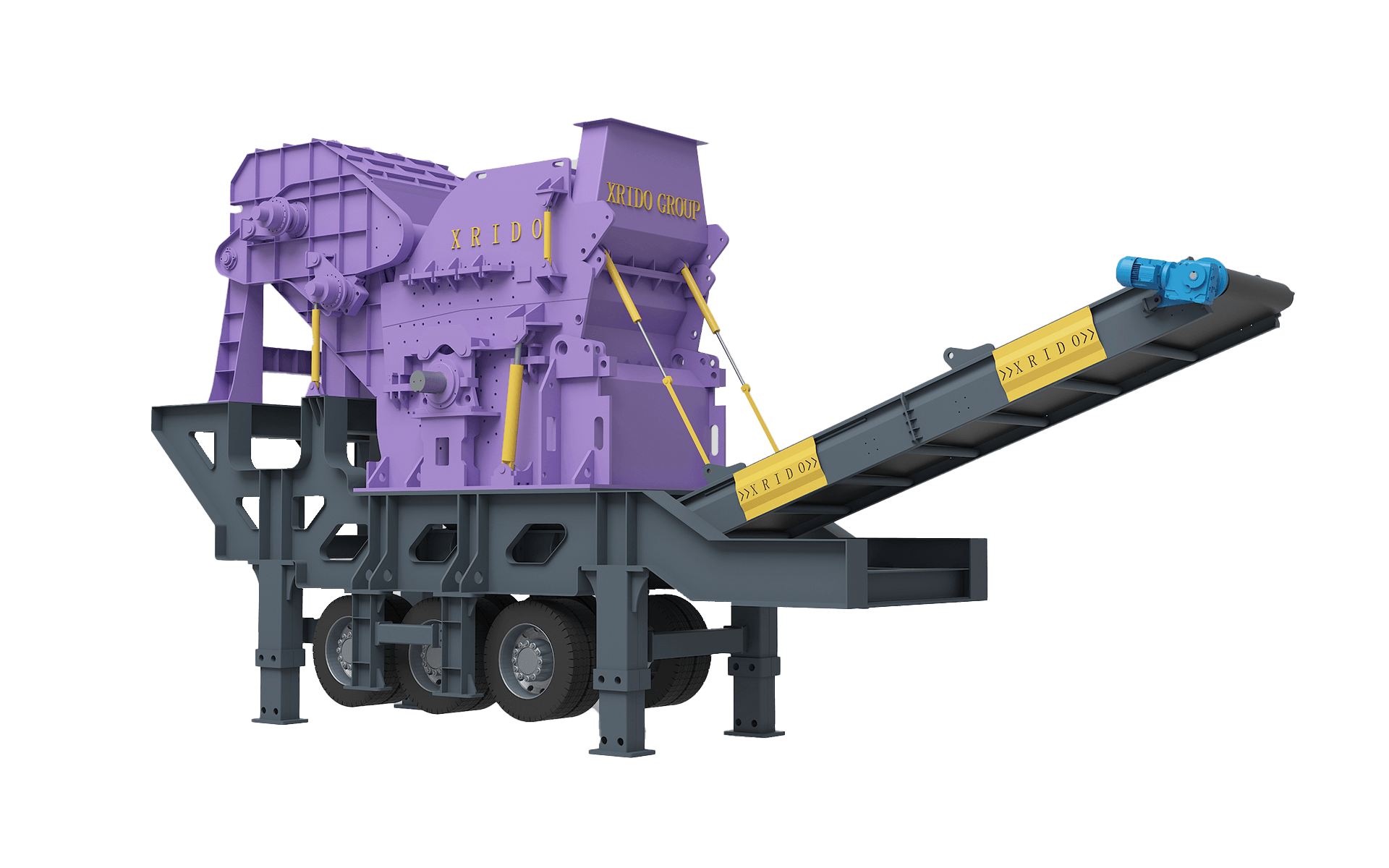

Configuration note: The 850 Model is shown in the equipment images. Published specifications are for reference. Final configuration and performance depend on material characteristics and agreed project requirements. Suitability for wood or municipal solid waste requires confirmation through testing. Discuss your material and target capacity with us.
Find the Right Configuration for Your Project
Share your material, target capacity and site conditions. We will discuss equipment suitability and configuration with you before preparing a project-specific quote. Not sure which model to choose? Start with what you need to process.
Start with your material
Tell us what you process, your target capacity and any site constraints. If you are unsure about the specifications, we can help you evaluate the options.
Have material photos or a video? Send them via WhatsApp to help us understand your application.
Discuss my application on WhatsApp ↗Phone / WhatsApp
+86 190 3717 7788Factory Address
No.9 Yulian Industrial, Gongyi, Zhengzhou City, Henan Prov, China
Office Location
Zhengzhou, Henan, China
Request a configuration & quote
Interested in MSTD850 Mobile Crushing Station? Share your application so we can discuss a suitable configuration and prepare a project-specific quote.
